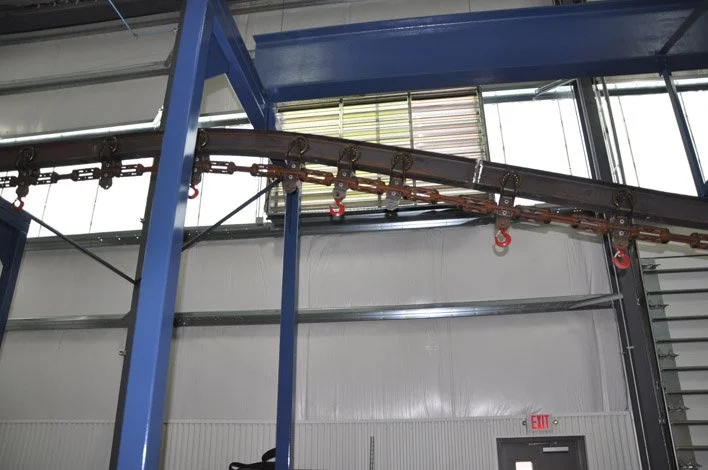

When a powder-coat or paint line struggles to hit daily quota, most engineers look first at washers, booths or ovens. Yet the silent speed-killer is often the overhead conveyor layout. A few inches of chain sag, a mis-sized drive or a poor curve radius can rob you of feet-per-minute and throttle the entire finish line.
Drawing on data from the GAT Finishing Systems conveyor portfolio—from 200-lb enclosed track to 6,000-lb I-Beam and power-and-free drives—this guide dives into the five most common layout blunders that slow production and how to fix them before the first hanger goes up.
1. Under- or Over-Specifying Track Capacity
Why it happens
Designers often default to whichever conveyor their last project used, ignoring the real part mix. The result is either:
- Chain pinch-points (under-spec), forcing operators to throttle speed to avoid stalls, or
- Massive I-Beam overkill (over-spec), where excess chain weight eats horsepower and kWh.
How to spot it
Compare part weight × fixture weight to the continuous rating of the chosen track. GAT’s lineup ranges from 200-lb enclosed-track trolleys up to 6,000-lb, 6-inch I-Beam—giving a right-sized option for every load window.
The fix
- Match the heaviest hanger set to the continuous rating (not the intermittent peak).
- Use load-bar designs that distribute weight evenly across trolleys.
2. Ignoring Accumulation and Bypass Zones
Why it happens
In straight-through “continuous” layouts there’s no buffer. Any halt at the washer or booth backs up the entire line within minutes.
Hidden cost
Operators drop conveyor speed to cushion stoppages; WIP piles up, and ovens run half-empty.
How GAT solves it
A modular power-and-free (P&F) section lets dwell-hungry parts pause in a spur while the main line keeps moving. GAT’s bolt-together drives splice P&F into existing enclosed track or I-Beam with minimal downtime.
Best practice
- Add at least one carrier length of accumulation per critical station.
- Use load-tracking PLC logic to release parts automatically when downstream clears.
3. Designing Tight Curves and Steep Elevation Changes
Symptom
Chain speed must be reduced 10–20 % to keep trolleys from binding on S-curves or inclines.
Root cause
Curve radius smaller than 24 inches for enclosed track or elevation changes over 25° without a take-up section.
Engineering tip
GAT’s “Modular Architecture” calls for bolt-together curve sections and verticals with pre-set radii—no field torch-cutting that can mis-align track. Curves and lifts share sealed bearings and oil-bath gearboxes for low friction, sustaining nameplate speed through turns.
Checklist
- Maintain the manufacturer’s minimum curve radius for the chosen chain size.
- Insert powered assist drives on long inclines or at the top of lifts.
- Position take-ups after long declines to absorb chain surge.
4. Mismatching Conveyor Speed to Process Takt Time
The trap
You set the conveyor at 10 fpm because that’s what the datasheet lists—then discover the washer needs 90 seconds spray, the oven needs seven minutes at 400 °F, and colour change takes 12 minutes. Line speed drops to accommodate the slowest process.
GAT advantage
With VFD drives, recipe indexing and ±1 fpm repeatability, GAT conveyors can run multiple takt speeds in one shift and automatically idle when upstream stations stop—eliminating the stop-and-go that kills throughput.
How to balance the line
- Calculate dwell (time) = (zone length ÷ conveyor speed) for each station.
- Size buffer loops so high-dwell zones (ovens) never dictate main-line speed.
- Program smart PLC recipes to auto-ramp speed during colour change or lunch breaks.
5. Neglecting Maintenance Access and Chain Lubrication
Impact on speed
Dry rollers and mis-aligned track add drag; the drive amps spike, PLC current limits kick in, and speed ratchets down.
Data point
GAT chains with auto-lube options extend service intervals to 2,000 hours, and PM-plan users report > 98 % mechanical uptime.
Prevention
- Specify walk-along catwalks at elevation changes.
- Use quick-open drip pans under load points for easy cleaning.
- Install auto-lube and schedule weekly visual chain inspection (15 min).
Bringing It All Together: Layout Rules of Thumb
| Rule | Why it matters |
|---|---|
| Right-size chain first | Capacity mis-match is the #1 speed limiter. |
| Budget 1 carrier of accumulation per station | Keeps stops local, not line-wide. |
| Stick to OEM curve radii | Preserves design speed through turns. |
| Synchronise takt in PLC | Prevents artificial slow-downs. |
| Design for maintenance | A lubed, aligned chain runs faster and longer. |
Why Process Engineers Pick GAT Conveyors
- Right-Sized Capacity: ET-200 to 6,000-lb I-Beam with no over-spec cost.
- Modular Architecture: Bolt-together drives, curves and verticals for rapid install and re-configuration.
- Smart PLC Control: VFD speed, recipe indexing, load tracking—syncs takt and slashes WIP.
- Low-Maintenance Design: Sealed bearings, oil-bath gearboxes, optional auto-lube.
- Performance Metrics Proven: ±1 fpm speed repeatability and > 98 % uptime on PM plans.
Next Steps
- Send us your heaviest part and target takt time—we’ll run a chain-pull and curve-radius check in 48 hours.
- Request a 3-D layout review to see where buffer loops or P&F spurs could restore full line speed.
- Book a 30-minute call with a GAT conveyor engineer to get a fixed-cost quote that includes installation, PLC tuning and operator training.
Ready to keep parts moving without bottlenecks? Talk with GAT Finishing Systems today and turn those speed-killing mistakes into measurable throughput gains.
